A proper backstop for an indoor shooting range safely catches all projectiles, preventing ricochets and protecting shooters and the facility. This essential safety feature can be constructed from various materials like steel, rubber, or specialized ballistic materials, designed to absorb or contain bullet energy effectively. Choosing the right backstop depends on your range’s specific needs, budget, and the types of firearms you’ll be using.
Setting up an indoor shooting range, even for backyard practice, can be incredibly rewarding. It gives you a safe place to hone your skills any time, regardless of the weather. But the most critical piece of any indoor range isn’t the targets or the lighting; it’s the backstop. Without a reliable backstop, an indoor range isn’t safe. It’s understandable to feel a little overwhelmed about building one. The good news is, with a bit of knowledge and careful planning, creating an effective backstop is entirely achievable. We’ll walk you through everything you need to know to build a safe and effective backstop, so you can focus on what matters – your shooting practice.
Why You Absolutely Need a Backstop for Your Indoor Shooting Range
Imagine shooting indoors without a proper way to stop your bullets. That thought alone is enough to make any responsible shooter pause. A backstop is non-negotiable for safety. Its primary job is to catch stray bullets and fragmented projectiles, preventing them from bouncing off walls, ceilings, or floors and potentially hitting someone or something unintended. These unintended bounces are called ricochets, and they are incredibly dangerous.
A well-designed backstop also helps contain lead dust and fragments, making cleanup easier and the air quality safer. Over time, lead dust can accumulate, posing a health risk if not properly managed. A good backstop system contributes to a cleaner, healthier shooting environment. Beyond safety, a proper backstop can also help reduce noise, making your indoor range a more pleasant place to shoot. Investing in a quality backstop is an investment in safety, longevity, and the overall experience of your indoor shooting range.

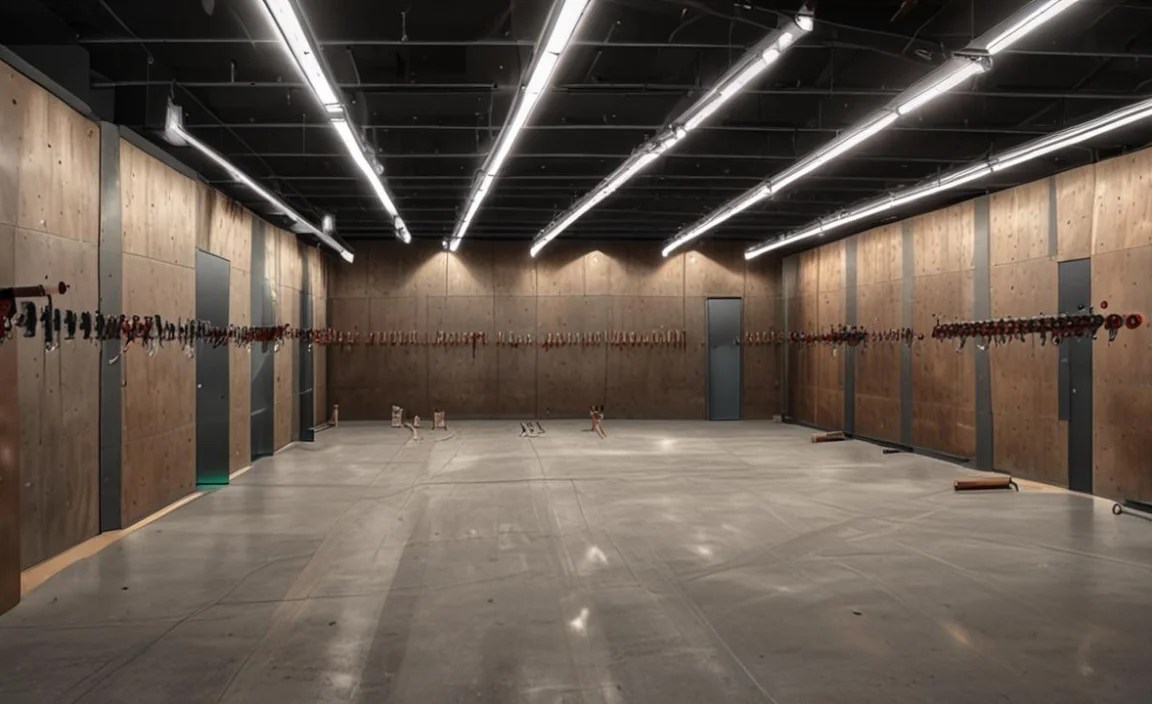

Understanding Different Types of Backstop Materials
The material you choose for your backstop is crucial as it determines its effectiveness, lifespan, and cost. Each material has its own pros and cons, and the best choice often depends on the types of firearms you’ll be using (e.g., handguns vs. rifles), the volume of shooting, and your budget.
Steel Backstops
Steel is a popular choice for its durability and ability to withstand repeated impacts. However, it’s not as simple as just hanging a sheet of steel. The type of steel, its thickness, and its angle are critical factors.
AR500 Steel: This is armor-grade steel designed to resist penetration and spalling (where fragments break off the surface). For handgun calibers and slower rifle rounds, AR500 steel plates, often angled downwards, can be very effective.
Rolled Homogeneous Armor (RHA): While extremely tough, RHA is often overkill and prohibitively expensive for most indoor range setups.
Mild Steel: This is generally not recommended for direct impact zones as it can easily pit, fragment, or be penetrated by many calibers. It might be used as a secondary layer or for specific applications where bullet energy is very low.
When using steel, careful consideration must be given to angle and containment. Steel creates fragments, so a system to capture these fragments and airborne lead particles is essential.
Rubber Backstops
Rubber backstops are known for their excellent ballistic dampening properties. They are very effective at stopping bullets and significantly reduce fragmentation and ricochet risk.
Granulated Rubber Berms: These are large structures filled with shredded rubber particles. As a bullet enters, the rubber granules absorb its energy, slowing it down and eventually stopping it within the berm. These are often used in professional ranges.
Rubber Tiles/Panels: Solid or interlocking rubber tiles can be mounted on a frame. When a bullet strikes, it deforms the rubber, absorbs energy, and may embed slightly. These are more manageable for smaller DIY setups.
Rubber backstops are generally quieter than steel and drastically reduce lead fragmentation, making them a safer and cleaner option. However, they can be more expensive upfront, and certain types of ammunition (like some high-velocity rifle rounds) might require specialized designs or thicker layers.
Bullet Trap Designs
Beyond simple material choices, backstops are often engineered into sophisticated “bullet traps.” These systems are designed to capture bullets and their fragments in a contained manner.
Angled Steel with Rubber: A common design involves angled steel plates that deflect bullets downwards into a containment area, often filled with rubber granules or specialized ballistic media.
Interlocking Rubber Walls: Walls constructed from thick, interlocking rubber blocks or panels that absorb impact and prevent ricochets.
Ballistic Fabric/Blankets: Multi-layered, heavy ballistic nylon or Kevlar-type fabrics can be hung to stop projectiles. These are often used as a less permanent or more flexible solution, sometimes as a curtain behind a primary backstop. They can be effective for lower-powered firearms but may have limitations with higher-energy rounds or longevity.
Bullet Containment and Litter Systems
Regardless of your primary backstop material, a system for capturing lead fragments and dust is vital. Steel and some rubber systems can still produce lead dust.
Sifting Systems: For granulated rubber berms or containment pits, systems are designed to collect the lead fragments which can then be safely removed and recycled.
Angled Floors and Collection Pans: Many backstop designs incorporate angled floors or specialized pans beneath the impact zone to collect spent bullets and fragments, making cleanup and lead reclamation much easier.
Designing Your Indoor Range Backstop: Key Considerations
Before you start building, you need a solid plan. Several factors will influence your design.
1. Firearm Types and Caliber Ratings
This is the most critical factor. A backstop designed for .22LR rimfire handguns will NOT be adequate for .308 rifle rounds. You need to know the maximum caliber and energy level of the firearms you intend to use.
Handguns: Generally require less robust backstops. Steel angled at 45 degrees or thicker rubber materials are usually sufficient.
Rifles: High-velocity rifle rounds carry significant energy and can penetrate many materials. They require much thicker steel, specialized ballistic materials, or deep rubber berms. Many commercial indoor ranges use angled AR500 steel for handguns and a multi-layered steel or specialized ballistic rubber system for rifles.
Consulting firearm ballistic data (energy, velocity, penetration potential) is essential. Resources from organizations like the Ammoland or reputable firearms manufacturers can provide valuable insights into projectile behavior.
2. Space and Dimensions
How much space do you have? This will dictate the size and type of backstop you can implement.
Depth: For materials like rubber granules or ballistic sand, depth is key to energy absorption. You might need several feet of material.
Height: The backstop needs to be tall enough to catch any shots that go slightly high.
Width: It should be wider than your shooting lanes to catch any shots that stray horizontally.
3. Ventilation and Dust Control
Shooting produces harmful lead dust. Proper ventilation and containment are crucial for air quality.
Air Exchange Rates: Professional ranges often have specific air exchange rates mandated by safety standards, like those outlined by the Occupational Safety and Health Administration (OSHA) guidelines for lead exposure, although these are for occupational settings, they highlight the importance of air quality control.
Sealed Containment: Your backstop system should ideally be enclosed to prevent lead dust from escaping into the rest of the space.
Filtration Systems: HEPA filters are often used in range ventilation to capture lead particles.
4. Budget
Materials and designs vary widely in cost.
DIY Options: Can be cost-effective but require careful planning and execution to ensure safety.
Commercial Systems: Offer engineered solutions with guaranteed performance but come at a higher price point.
5. Noise Reduction
Indoor ranges can be very loud. Your backstop choice will affect the acoustics. Rubber and specialized ballistic materials tend to absorb sound better than plain steel.
Step-by-Step Guide to Building a Basic DIY Backstop
This guide outlines a common, relatively budget-friendly DIY approach suitable for handguns and lower-powered rifle calibers, often using angled steel plates and a containment system. Always prioritize safety and consult with local regulations and experts if you have any doubts.
Phase 1: Planning and Material Gathering
1. Determine Your Needs:
What firearms will you use? (e.g., 9mm, .45 ACP, maybe a .223 rifle).
What is your available space (depth, width, height)?
What is your budget?
2. Select Primary Backstop Material:
Angled AR500 Steel: A common choice. You’ll need steel plates, typically 1/4″ to 3/8″ thick for handguns, thicker for rifles. The key is to angle them downwards (around 10-15 degrees is common) so bullets deflect into a containment area instead of staying and potentially penetrating.
Secondary Containment: This stops fragments and slower-moving projectiles that might not hit the primary steel perfectly. Options include:
Rubber Mulch/Granules: Available at landscaping supply stores. Needs to be contained in a box or pit.
Sand: Requires significant depth (at least 2-3 feet) and can be messy.
Ballistic Rubber Tiles: Can be mounted behind the steel.
Wooden Frame with Plywood Backing: Plywood can be used as the back wall of your containment pit, but it will eventually degrade and need replacement.
3. Gather Tools and Hardware:
Measuring tape
Level
Drill and bits (for metal and wood)
Wrenches and sockets
Welder (if fabricating steel mounting brackets) or heavy-duty bolts/hardware
Safety glasses, gloves, hearing protection
Lumber (for framing)
Fasteners (screws, bolts)
Steel plates (cut to size, consideration for edges and mounting holes)
Containment material (rubber mulch, sand, etc.)
Phase 2: Constructing the Frame and Mounting Surface
1. Build the Frame:
Construct a sturdy frame using lumber (e.g., 2x4s or 2x6s) or metal. This frame will support your steel plates and potentially form the walls of your containment pit.
Ensure the frame is strong enough to hold the weight of the steel and any containment material.
Consider building an angled base for the containment pit if you are not using a pre-existing wall.
2. Mount the Steel Plates:
Fasten your AR500 steel plates to the frame. The plates should be angled downwards to deflect bullets into the containment area. The angle is crucial for safety and to prevent bullets from flying back towards the shooter.
Ensure all edges are smooth.
Use appropriate hardware. For heavier steel plates and significant bullet impact, consider welding mounting brackets or using robust through-bolts designed for high stress.
Phase 3: Creating the Containment Area
1. Install Walls/Pit:
If your frame doesn’t already create them, build sturdy walls around the impact zone to contain the secondary material. Use thick plywood (at least 3/4 inch) or other suitable materials. These walls should extend high enough and wide enough to catch any projectiles that miss the primary steel or fragments.
2. Fill the Containment Area:
Fill the base of your containment area with your chosen material (rubber mulch, sand, etc.).
For rubber mulch, aim for a depth of at least 12-18 inches. For sand, you’ll need significantly more depth (2-3 feet).
Ensure the material is spread evenly.
Phase 4: Testing and Refinement
1. Initial Test (Low Power):
Start with very low-powered ammunition (e.g., .22LR).
Fire a few shots at the backstop.
Carefully inspect the backstop. Listen for any unusual noises.
Check if the bullets are being caught and contained.
Look for any signs of excessive spalling or penetration.
2. Gradual Increase:
If the initial tests are successful, gradually increase the power of the ammunition used.
Continue to inspect after each change in caliber or power level.
3. Regular Maintenance:
Regularly inspect your backstop for wear and tear. Steel can pit over time, and containment materials can become saturated or compacted.
Clean out lead fragments periodically. This is crucial for safety and can allow you to recycle the lead.
Important Note: This DIY guide is a simplified overview. For higher calibers or professional-level safety, consider commercial ballistic containment systems or consult with experts. Always follow firearm safety rules and ensure adequate ventilation. The National Rifle Association (NRA) Range Safety guidelines are an excellent resource for general safety principles.
Comparing Backstop Options: A Quick Look
Here’s a table summarizing some popular backstop materials and their general characteristics.
| Material Type | Pros | Cons | Best For | Estimated Cost |
|---|---|---|---|---|
| AR500 Steel (Angled) | Durable, effective against many calibers, relatively long lifespan | Can cause spalling, requires careful angling, loud impact, needs fragment containment | Handguns, some rifle calibers (depending on thickness and angle) | $$ – $$$ (Cost of steel plates and fabrication) |
| Granulated Rubber Berm/Tiles | Excellent energy absorption, significantly reduces fragmentation/spalling, quieter impact, good lead dust containment | Can be expensive, may require significant material volume, some higher rifle calibers might need specialized designs | Handguns, rifles (with appropriate thickness/design) | $$$ – $$$$ (Depending on type and volume) |
| Ballistic Fabric Curtains | Flexible, relatively easy to install as a layer, good for lower-powered firearms | Limited lifespan under heavy use, less effective against high-energy rounds, may require frequent replacement | Low-power handguns and rimfire, often used as secondary layer | $ – $$ (Cost per square foot) |
| Sand/Earth Berm (Indoor application challenging) | Effective energy absorption if deep enough, inexpensive material | Requires massive depth for rifles, difficult to install and maintain indoors, can become saturated and less effective, potential for dust/moisture issues | Rarely used as primary indoor backstop, more common for outdoor ranges. | $ (Material cost, but high installation effort indoors) |
Cost estimates are relative and can vary significantly based on size, specific product, and vendor.
Essential Safety Gear to Pair with Your Backstop
A robust backstop is your primary line of defense, but it’s just one part of safe shooting. Always use appropriate personal protective equipment (PPE) when shooting at any range, especially an indoor one.
Eye Protection: Always wear ANSI-rated ballistic eyewear. Even with a great backstop, fragments or debris can be ejected.
Hearing Protection: Earplugs and/or earmuffs are essential to prevent hearing damage. Indoor ranges amplify noise significantly.
Respiratory Protection (Consideration): For prolonged shooting sessions or if ventilation is minimal, consider using a respirator rated for lead dust. Regular air quality monitoring can also be beneficial. Information on lead exposure limits and safety can be found from the Environmental Protection Agency (EPA).
Appropriate Clothing: Wear clothing that covers your arms and legs to minimize exposure to airborne particles.
Maintenance and Longevity of Your Backstop
Even the best backstop systems require maintenance to remain effective and safe.
Regular Inspections: Visually inspect your backstop before and after each shooting session. Look for:
Any signs of penetration or excessive damage to steel.
Compaction or saturation of containment material (rubber, sand).
Wear and tear on ballistic fabrics.
Loose fasteners or structural integrity issues.
Lead Cleanup and Recycling: This is crucial for both safety and environmental reasons. Spent lead fragments and dust should be collected regularly.
Use non-sparking tools when cleaning to avoid ignition.
Store collected lead in sealed containers.
Contact local scrap metal recyclers who specialize in lead; they can often provide containers and arrange for pickup. This not only disposes of hazardous material safely but can sometimes provide a small financial return.
Replacement of Materials: Containment materials like rubber mulch and sand will eventually become saturated with lead and may degrade over time. Ballistic fabrics have a finite lifespan. Plan for periodic replacement of these components to maintain optimal performance. Steel, if properly designed and maintained, can last for many years.
Frequently Asked Questions (FAQ)
Q1: Can I use a simple plywood wall as a backstop?
